Compact

Suitable for synchronous gearless and asynchronous geared traction machine.
CANBUS Serial communication mode.
Duplex and group control function.

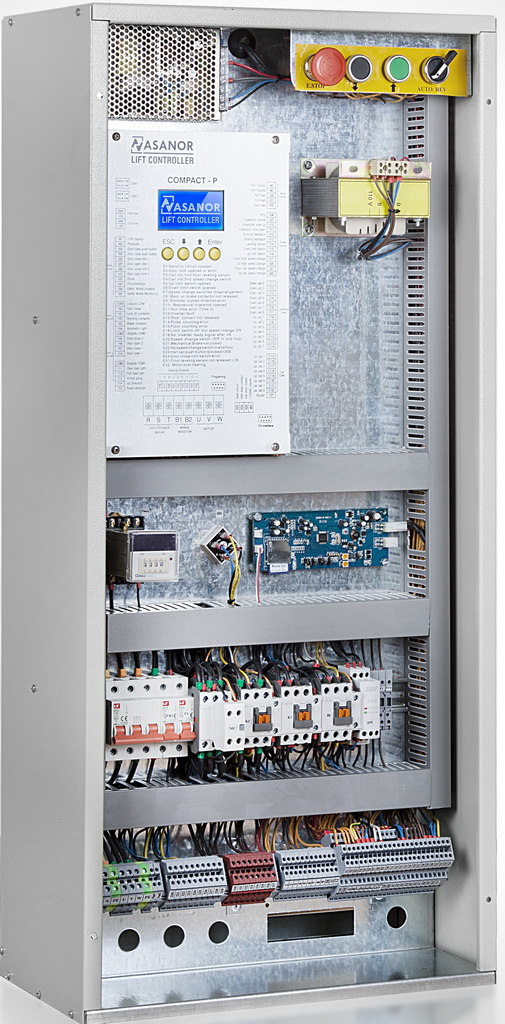

ASANOOR Compact elevator controller, Use high performance 32 digits of ARM7 CPU, and HITACHI specialized inverter chip. Suitable for three phase AC Asynchrouns and synchrouns Motor. Its friendly operation panel and simplest application with directly stop and precision leveling with a smooth curve. make the passenger feel comfort during the lift running.
A good hardware assembling with a simple construction, make the control panel small in size, it’s the best choice of room-less and transitional elevator.

  • Support Lift Type: Passenger Lift, Cargo Lift, Bed Lift, Sightseeing Lift
  • Max Speed: 4m/s
  • Max Floor: 64 floor
  • Control Mode: Simplex, Duplex, Group ( <= 8 units group)
  • Communication Mode: CAN BUS Control, use 32 digit ARM-7 CPU
  • Open system: support elevator program download;
  • Hositway data self-learning with encoder, auto selecting single or multi floor running curve.
  • Analog speed and multi speed given.
  • Suitable direct to stop.
  • Suitable for synchronous gearless and asynchronous geared traction machine.
  • Supports load-weighing compensation function.
  • Supports district monitoring and remote monitoring.
  • LCD display operation, can display the system statues.
  • 50 elevator fault records.
  • Inspection
  • Follow EN81, GB7588 safety standard.
  • Dimension: 450mm(W) * 250mm(D) * 1000mm(H)

Why Choose the ASANOOR Compact elevator controller?
1. Elevators with the integrated drive and controller offer higher safety standard, because the control system and drive system both offer safety protection functions. Meanwhile, the anti-interference capability of the integrated system is exceeding the highest level of related industrial standard.
2. Due to CAN bus serial communication, the elevator integrated drive and controller is provided with simple wire connection, strong data transmission capability and high reliability. It also offers high compatibility, as it is applicable for both synchronous motors and asynchronous motors.
3. The adoption of advanced vector control technology allows the elevator integrated drive and controller to offer superior motor speed regulation performance, thus enabling the elevator to offer passengers comfortable feeling.
4. The elevator integrated drive and controller offers elevators higher operation efficiency, and it also offers group control function. It is able to control maximally eight elevators synchronously, and also supports group control of elevators aiming to the same floors.
5. Designed based on new PWM dead time compensation technology and dynamic PWM carrier modulation technology, the elevator integrated drive and controller is able to reduce motor noise and motor loss effectively.

Control Modes:
    Synchronous motors (SPM/IPM drive): Closed Loop Vector for PM
    Induction motors: Closed-Loop Vector Control

  • Performing  emergency evacuation by using a single-phase 230V UPS
  • Direct control of motor brake and motor contactor
  • Short floor operation
  • Four independent settings of S-curves to prevent jerks
  • Auto-Tuning methods for optimizing motor handling performance (Rotational and stationary Auto-Tuning are available for both induction and synchronous motors)
  • Hardware baseblock (EN81-1 Compliance) offers the possibility to eliminate one motor contactor
  • Powerful torque characteristics
  • Zero-servo function and Starting Torque Compensation control for smooth start
  • LCD operator for parameter handling as standard
  • Copy function to save setting parameters in keypad
  • USB copy unit: faster and more convenient way to back up settings and instantly program the  drive
  • Multifunction terminal board with parameter backup function
  • 0.3m/s output for “door zone” operation
  • Inverter size (kW) can be selected same as motor kW rating
  • De-magnetization protection for PM motor
  • Input voltage sensors for phase loss detection
  • Carrier frequency up to 15kHz for quiet operation
  • System design according to EN954-1 Cat. 3, stop category 0, ISO EN13849-1 PLd, and IEC EN 61508 SIL2
