DP1632

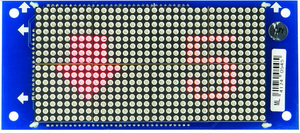

DP16X32D dots matrix display is of double colors. The parameters can be set through menus and please find below.

DP1632


Refer to above picture, connected “parameter setting short-cut flake, it will show “P0”. This means to enter main menu of parameter setting menu. Press “down” push button to select main menu and press “up” push button to select according sub-menu.

Under sub-menu window, press “down” push button to select the parameter which want to amend and press “up” push button to amend the parameter.

After setting parameters, pull off “parameter setting short-cut flake”, the display board can work normally and no need to power off.

According relation between Main/Sub menu

P0        (main menu for floor address)

    F01 (sub-menu for floor address)

P1        (main menu for function configure)

Fa0           (factory default setting, “1” to resume the default value)

Bo0          (baud rate “0” for 20K”1” for 80K)

HV0         (horizontal / vertical display (“0” for horizontal and “1” for vertical)

D20          (no function now)

FT0          (the flash colors for floor display which floor going to open door. “0” for red/green,”1” for red/orange, “2” for green/orange and “3” for red/green/orange.)

FC0          (the color for floor sign, “0” for red, “1” for green and “2” for orange)

UC0          (color for up arrow, “0” for red, “1” for green and “2” for orange)

DC0          (color for down arrow, “0” for red, “1” for green and “2” for orange)

DS0          (select A or B door, “0” for A door and “1” for  B door)

RS0          (scrolling speed)

SC0          (color for status information, “0” for red, “1” for green and “2” for orange)

Lo0           (when lock lift, with display or without display “0” for with display and “1” for                                without display)

NE0   (whether to show error code, “0” for show error code and “1” for not to show)

P2        (main menu for amend floor display contents)

    01              (the according floor display contents are decided by the display board itself. The left parameter “01” is for floor(noted: if “00” is for default value.) If the right parameter without display, it means the floor display is decided by the controller. The floor display will show according to the controller. But if right parameter with display, it means this floor display is decided by fixed contents instead of by the controller.
